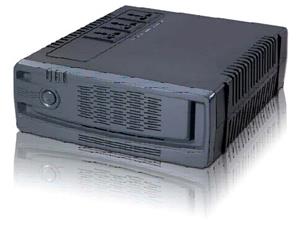

Category: Emergency Light Power / Model Name: ECO 2.4k




Model Number: ECO 2400

Download Brochure

Check Alarm Code
 Features
  - Sensitivity selector (UPS mode & Inverter mode)
  - 12VDC or 24VDC available
  - 10 A standard charging current (for Battery 100Ah). Optional 20A charging current (for battery 200Ah) available
  - Auto restart while AC is recovering
  - Simulated sine wave
  - Overload and short circuit protection
  - Over-temperature indicator available
  - Adjustable battery charging voltage
  - Generator & Computer-related devices compatible
  - Three indicator available
  - Cold start function


Product Descriptions

THE NEW CONCEPT FOR EMERGENCY LIGHT DESIGN:
ระบบไฟส่องสว่างฉุกเฉินโดยทั่วไป จะประกอบด้วยหลอดไฟฟ้าแบบ DC ที่ติดมากับเครื่อง Emergency Light โดยตรง ซึ่งหากต้องการให้มีไฟฉุกเฉินส่องสว่างทั่วทั้งพื้นที่ ท่านจะต้องทำการติดตั้ง Emergency Light ไว้ หลายๆ จุด และต้องมีภาระในการซ่อมบำรุงแบตเตอรี่ที่กระจายอยู่ แบบเครื่องต่อเครื่อง ซึ่งไม่สะดวก
ด้วยระบบสำรองไฟฟ้าฉุกเฉิน EmergencyLight Power จะเปลี่ยนแนวคิดในเรื่องการติดตั้งระบบไฟฟ้าส่องสว่างฉุกเฉินใหม่ทันที เพราะเพียงแต่ท่านนำเครื่อง EmergencyLight Power รุ่น ECO นี้มาติดตั้ง เป็นแหล่งจ่ายไฟฟ้าให้กับระบบไฟส่องสว่างภายในสำนักงาน หรือภายในบ้านของท่าน เพียงเท่านี้ ก็จะทำให้ระบบไฟส่อง สว่างเดิมของท่านทำหน้าที่เป็น ระบบไฟส่องสว่างฉุกเฉิน (Emergency Light) ได้ทันที โดยเครื่อง EmergencyLight Power รุ่น ECO จะจ่ายไฟฟ้า 220Vac ให้กับระบบไฟส่องสว่างเดิมของท่านอย่างต่อเนื่องทันทีจากพลังงานสำรองที่เก็บไว้ในแบตเตอรี่ขนาด 100Ah เป็นเวลา ไม่ต่ำกว่า 1 ชั่วโมง (ขึ้นอยู่กับจำนวนหลอดไฟฟ้า) ซึ่งจะทำให้พื้นที่ภายในสำนักงาน หรือภายในบ้านของท่านมีไฟส่องสว่างแบบปกติตลอดเวลา แม้กระทั่งในช่วง ที่เกิดเหตุไฟฟ้าดับอย่างกระทันหันก็ตาม นอกจากนั้นระบบ EmergencyLight Power รุ่น ECO ยังช่วยให้เกิดความสะดวกในการ ซ่อมบำรุงแบตเตอรี่ เพราะแบตเตอรี่จะถูกติดตั้งที่จุดเดียว

TypeItemsSpecification
CapacityCapacity2400VA/1440W
InputVoltage Range162 - 290 VAC
 Frequency Range50/60 Hz (auto sensing)
 PhaseSingle Phase with Ground
OutputVoltage Range220 +/- 10% VAC
 Frequency Range50 +/- 1 Hz
 Output Wave formModified Sine wave
 OutletUniversal x 3
BatteryBattery type x Unit12V/100Ah x 1 (Sealed Lead-Acid Maintenance Free with suspended electrolyte) or on requested
 Backup time> 60 min (depend on load)
 Recharge Time (to 90%)4-6 hrs.(to 90%)
Transfer TimeTransfer Time10 ms.
IndicatorLEDAC mode/Batt mode/Chargin Mode/Over Load/Fault
Audible AlarmOver-temperatureContinuously sounding
Protection Full ProtectionOverload and short circuit protection
Audible AlarmLow BatterySounding every 2 second
 OverloadSounding every 0.5 second
 FaultContinuously Sounding
DimensionDxWxH mm293 X 231.5 X 82.5
Weightkgs2.55
EnvironmentOperation Environment0-40 C
 Relative Humidity0-90% (Non-Condensing)
 Noise Level<40dB @ 1 Meter
